3D Modelling
3D Modeling Services
- 3D Modelling of new as well as existing facilities.
- Capabilities of software’s like, PDS, PDMS, Cadworkx, SP3D etc.
- Latest Version Available for all the modeling software’s.
- Availability of skilled manpower.
Key Capabilities - Administration
- Administration & customization
- Spec creation & symbol customization.
- Support Customization.
- Creation of project, user, databases, project hierarchy.
- Working procedure for designers and modellers.
- Setting up project backup.
- Creation of catalogues and specification.
- Creation of macros to reduce man-hours.
- Database management, backtracking, reconfiguration, access control rights.
- Customization of all deliverables as per customer format and requirement.
- Transfer and setup databases.
- Troubleshooting of 3D model.
Key Capabilities – Modelling

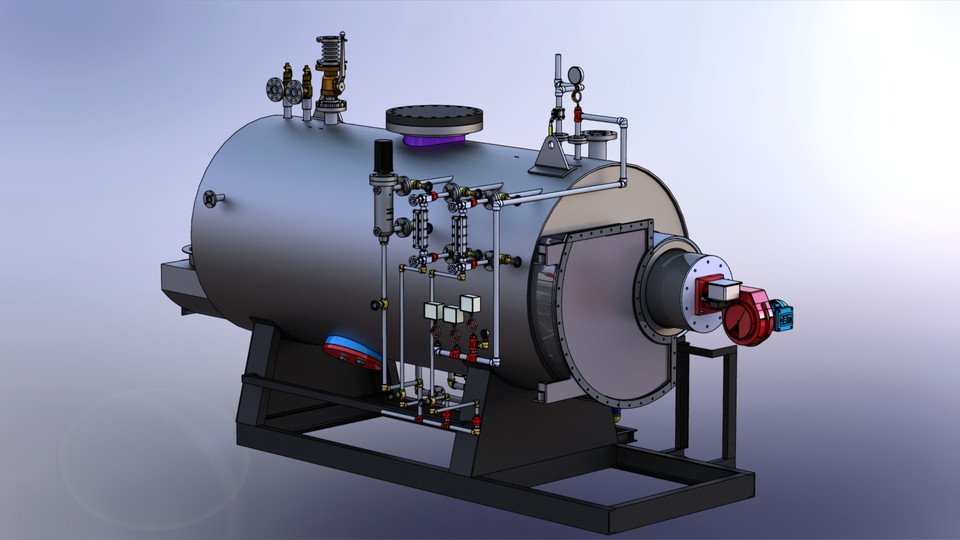

Equipment Modelling.

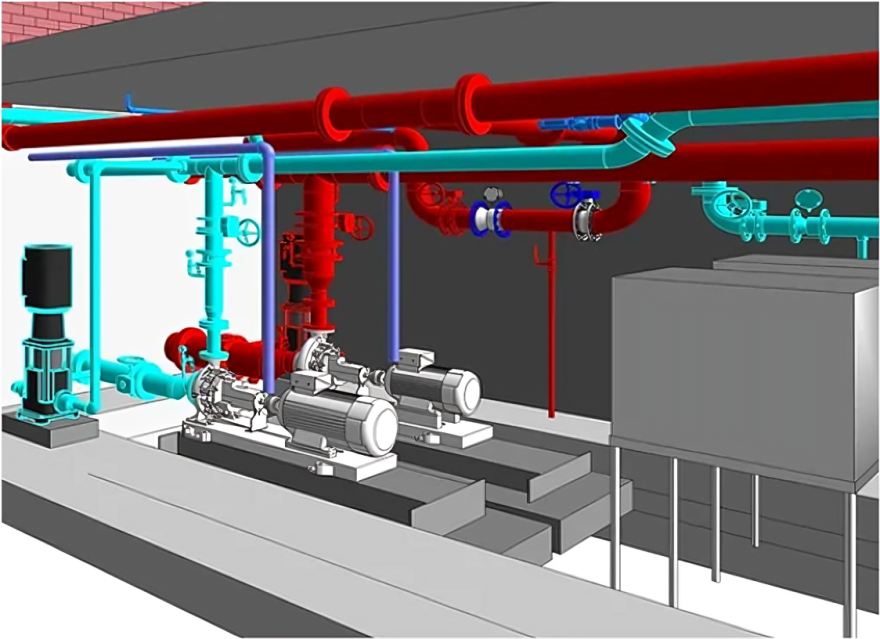

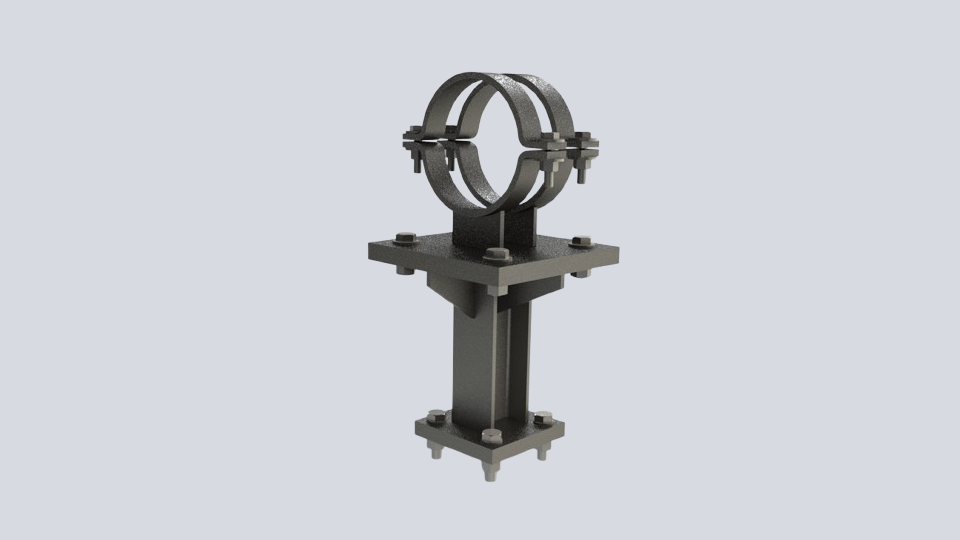

Piping & Support Modelling.
Electrical, Instrumentation & Cable Trays.

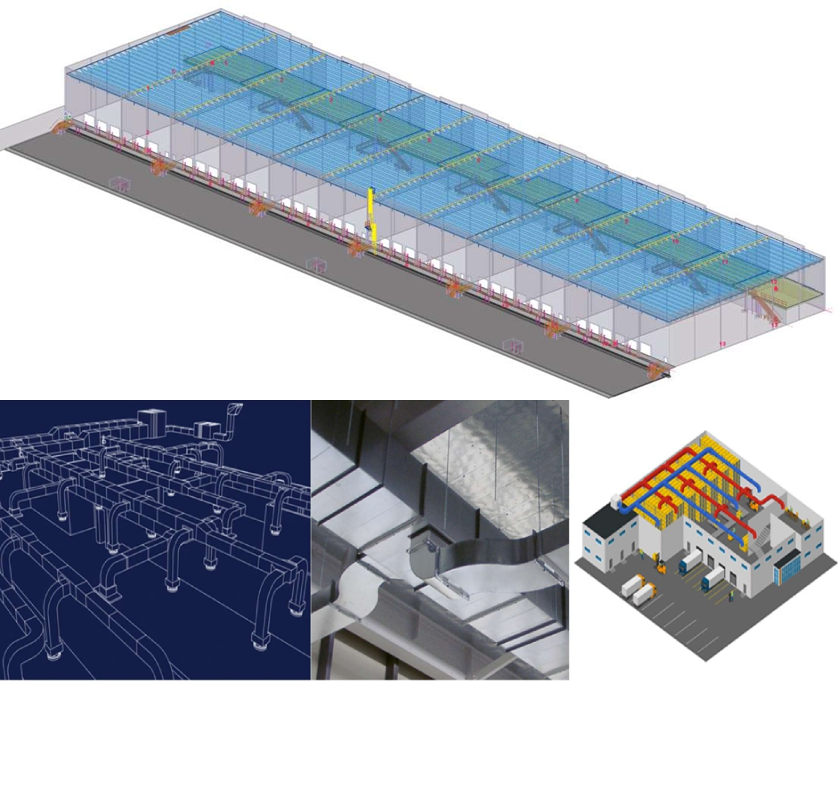

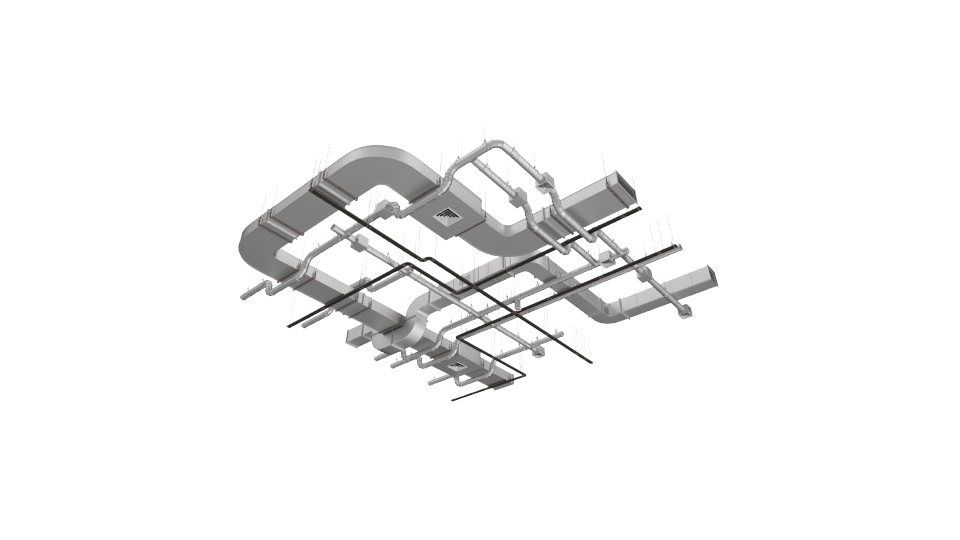

HVAC Duct Modelling.

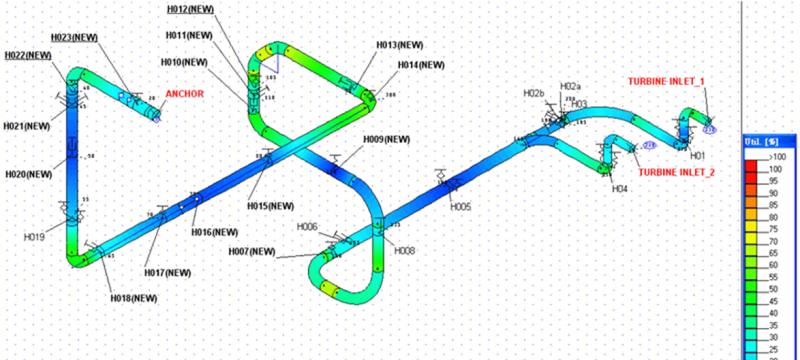

Pipe Stress Analysis.

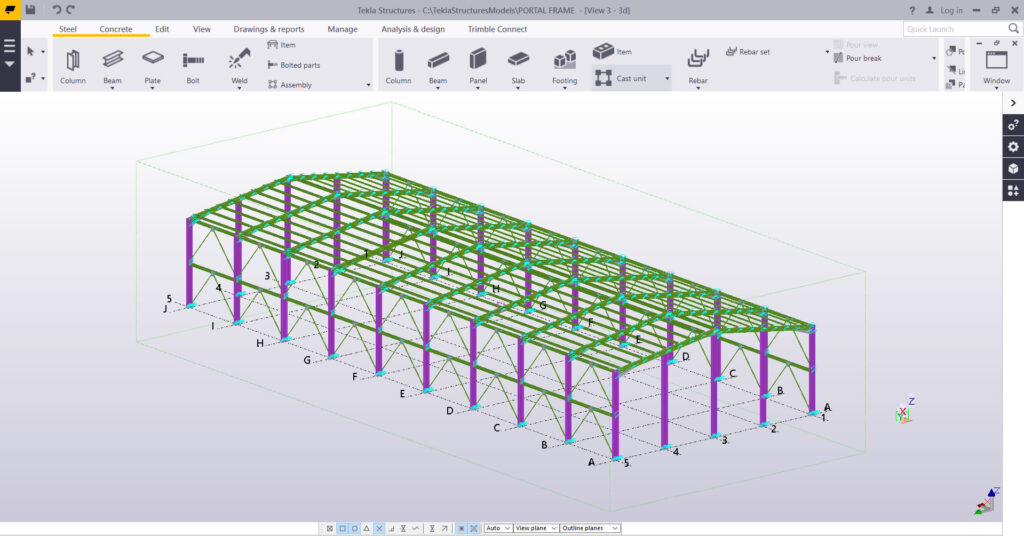

Structural Analysis.

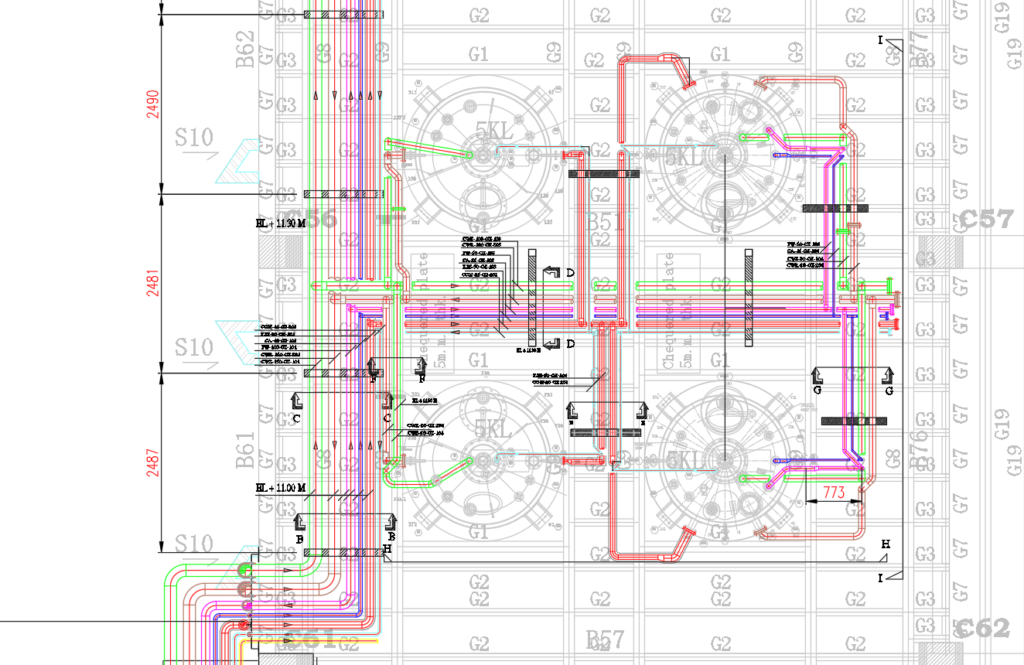

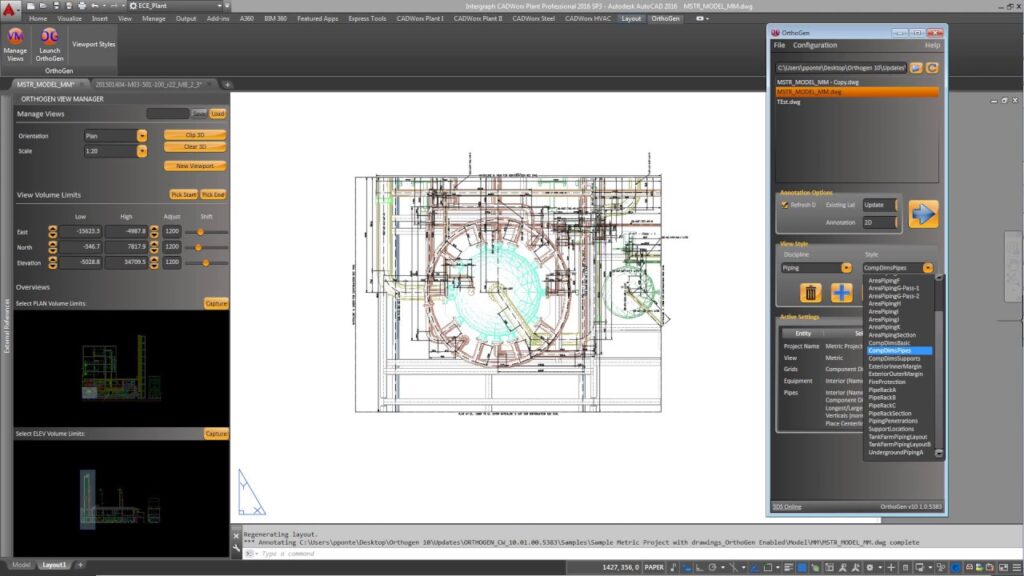

Extraction of 2D Drawing from Model
(Plot Plan, Equipment Layout, Piping G.A., Support G.A ; Isometrics).
